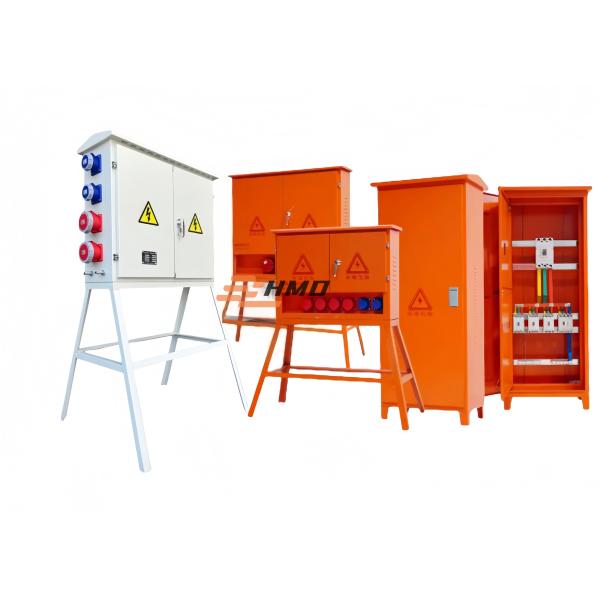

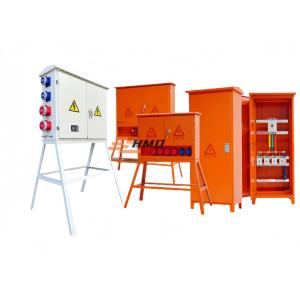

Primary Secondary Tertiary Distribution Panel System Power Distribution Solution
Product Describe:
1. Primary (MDB)
2. Secondary (SDB)
3. Tertiary (FDB)
Design:
| Size (H×W×D) mm |
Enclosure/Door/Mounting Plate Thickness (mm) |
Material Options |
| 300×220×120 |
1.5/1.5/2.0 |
Cold-rolled steel / Stainless steel (SS304) |
| 300×220×155 |
1.5/1.5/2.0 |
Cold-rolled steel / Stainless steel (SS304) |
| 300×250×160 |
1.5/1.5/2.0 |
Cold-rolled steel / Stainless steel (SS304) |
| 500×400×210 |
1.5/1.5/2.0 |
Cold-rolled steel / Stainless steel (SS304) |
| 500×500×210 |
1.5/1.5/2.0 |
Cold-rolled steel / Stainless steel (SS304) |
| 600×400×200 |
1.5/1.5/2.0 |
Cold-rolled steel / Stainless steel (SS304) |
| 600×500×250 |
2.0/2.0/2.5 |
Cold-rolled steel / Stainless steel (SS304) |
| 600×600×210 |
2.0/2.0/2.5 |
Cold-rolled steel / Stainless steel (SS304) |
| 600×600×300 |
2.0/2.0/2.5 |
Cold-rolled steel / Stainless steel (SS304) |
| 700×500×250 |
2.0/2.0/2.5 |
Cold-rolled steel / Stainless steel (SS304) |
IP Grade:
IP54 / IP55 / IP65 / IP66
Suggestion:
1. Smart Upgrades
Basic: Energy meters (Class 1.0)
Advanced: IoT gateway (4G/Modbus TCP) for load scheduling
2. Material Selection
Standard: Powder-coated steel (IP54)
Harsh Areas: SS304 + IP66 (add 20% cost)
Guangzhou Hengmeida Automation Technology Co., Ltd
HMD is a specialist in the research, development, and manufacturing
of industrial automation control systems, with a strong focus on
custom-built low-voltage control panels and PLC intelligent control
cabinets.
We have established strategic partnerships with leading component
manufacturers such as Siemens, Schneider, and ABB, ensuring that
every solution we deliver is built on reliable, high-performance
components. Committed to providing end-to-end electrical cabinet solutions, we
tailor-make cabinets with functionalities precisely aligned to your
unique requirements—from design to delivery, we handle it all.
Backed by a team of seasoned electricians, CAD/EPLAN-certified
designers, and expert PLC programmers, we adhere strictly to
rigorous quality management systems. This enables us to offer comprehensive one-stop services,
encompassing solution design, precision machining, and system
commissioning. Our products find wide application across smart buildings,
industrial automation, energy management, and beyond, empowering
seamless and efficient operations in diverse sectors.
