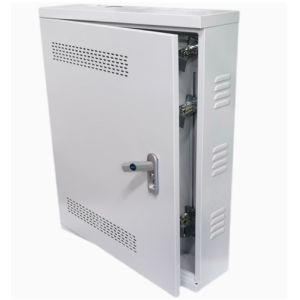

Wall Mounted Enclosure with Ventilation Low Voltage Distribution Box

Product Describe:

Design:

Material:

Galvanized Sheet / Cold rolled steel /Stainless Steel

OEM / ODM Suggestion :

1. Heat Dissipation Matching: Calculate the required ventilation area based on the total heat output of internal components. For high-power devices (>500W), design multi-layered ventilation structures (e.g., top exhaust + bottom intake) and match with filter screens to prevent dust ingress.
2. Structural Reinforcement: Use 1.5-2mm cold-rolled steel for the enclosure body when the size exceeds 1200mm in length. Add reinforcing ribs at the door and frame connections to avoid deformation caused by ventilation hole openings.
3. Environmental Adaptation: For coastal areas, adopt 304 stainless steel material and laser-cut louvered vents (angle <45°) to resist salt spray corrosion. For high-vibration environments (e.g., factories), integrate rubber gaskets around ventilation openings to reduce resonance noise.
4. Installation Compatibility: Ensure ventilation holes are staggered with internal component layouts to avoid blocking airflow paths.
Safety Compliance: The diameter of ventilation holes should be ≤12mm to prevent finger contact with live parts.
